Flood Shields

A white background with a few lines on it

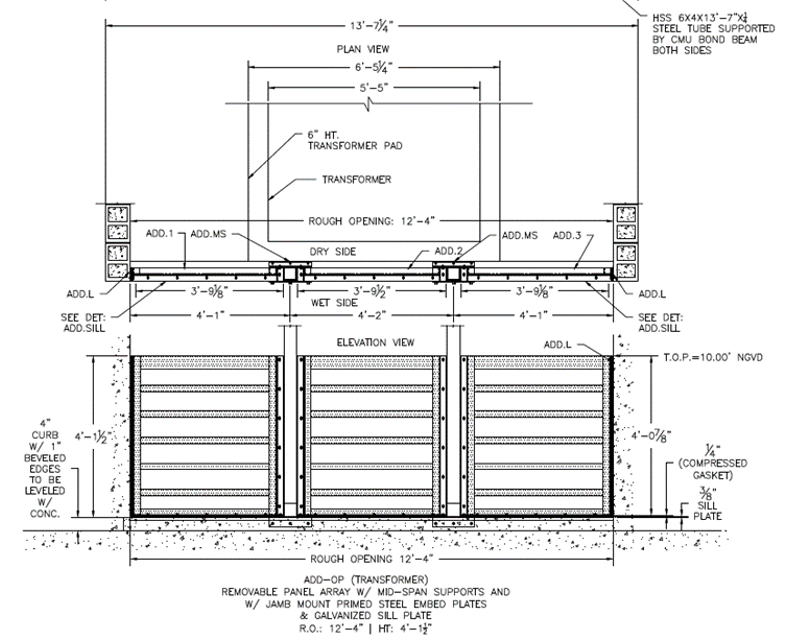

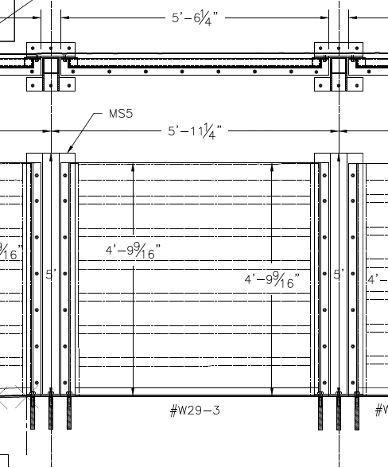

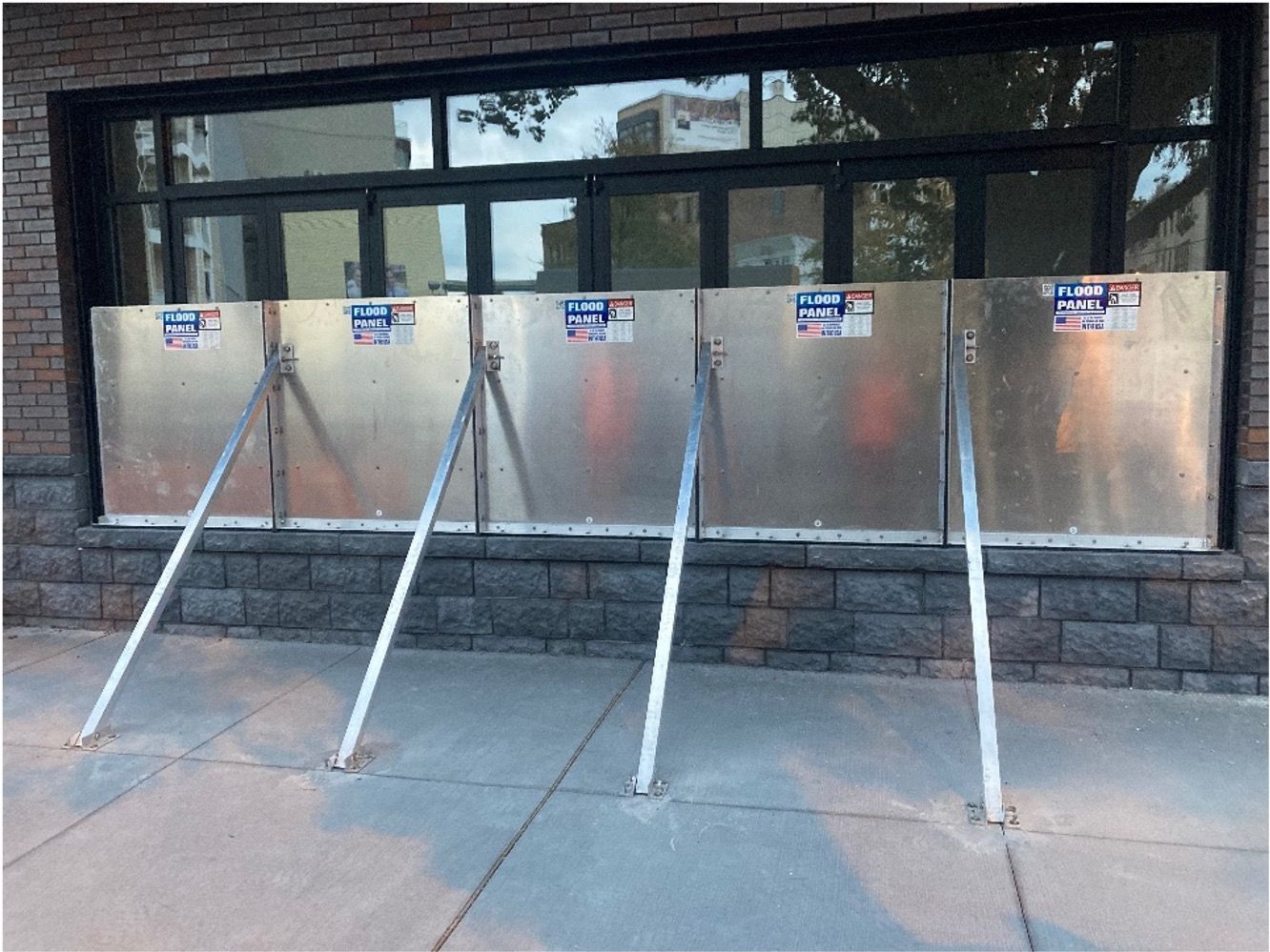

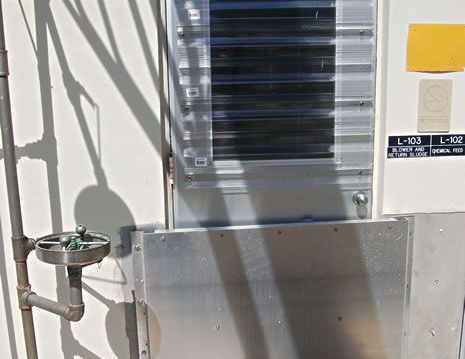

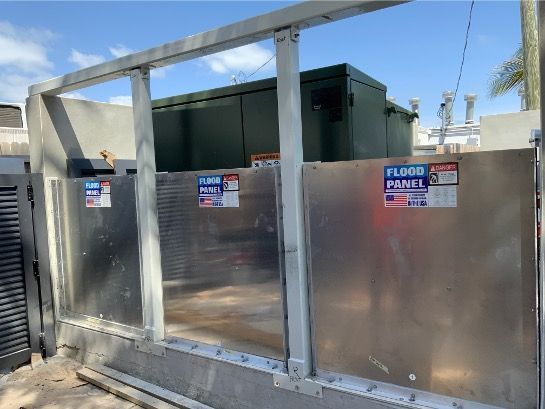

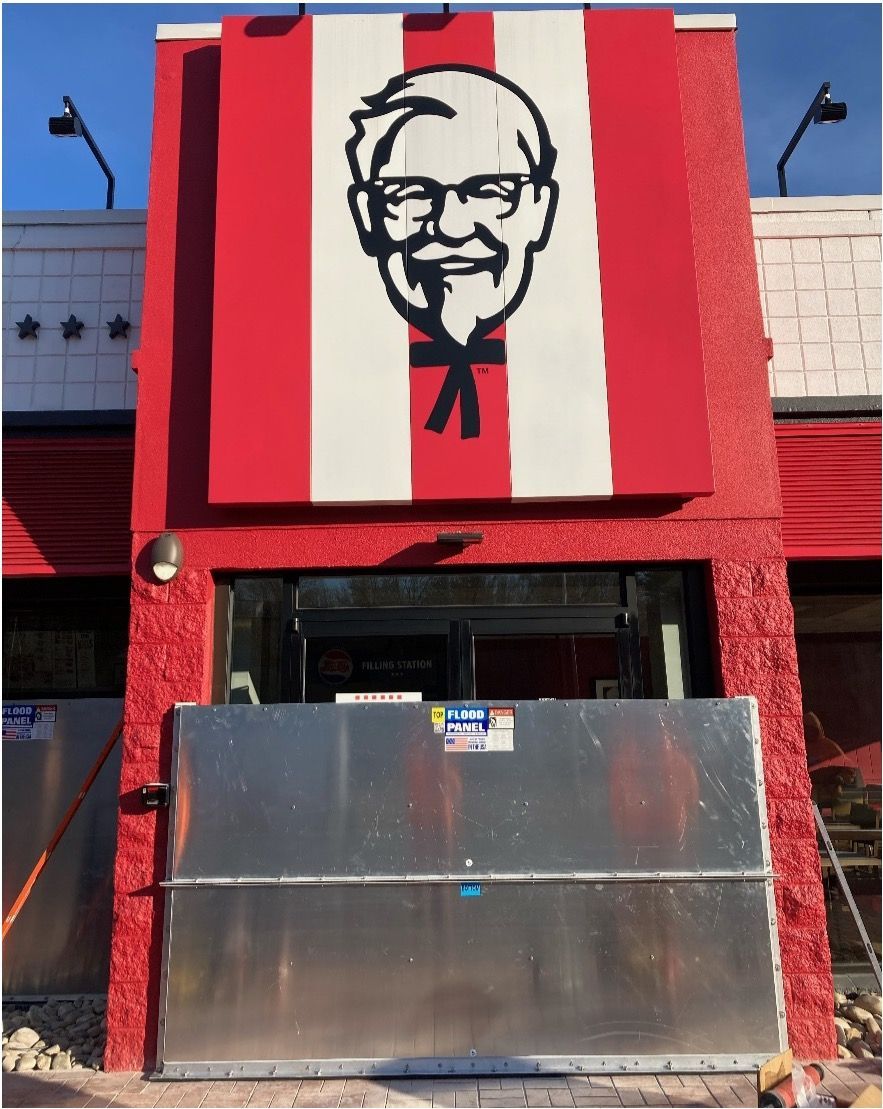

The Flood Panel Flood Shields by Floodproofing.com system is a solid removable flood barrier ideal for single or double-door applications. It is engineered to withstand hurricane forces and floodwater hydrostatic impacts. Each panel is specifically engineered to the full “designed flood elevation” (height required), and is edged with a rubber gasket. The panels themselves are connected to the floor and sides of each opening or each other by preinstalled anchors and through bolts. Panels with a span greater than 4′ can be supported by either a 45-degree brace or a Mid-Span Support Post® (A proprietary design of Flood Panel) if necessary. We offer design heights from 12″ to over 7′. Custom designs are available that include large panels with no braces.

The Flood Shields can also be designed with embed mounting plates for the sill and jambs allowing for easy initial installation as well as rapid deployment. The embed plates are available in primed steel or stainless steel and can be painted to blend with the building color.

3-Part Specs

Specs

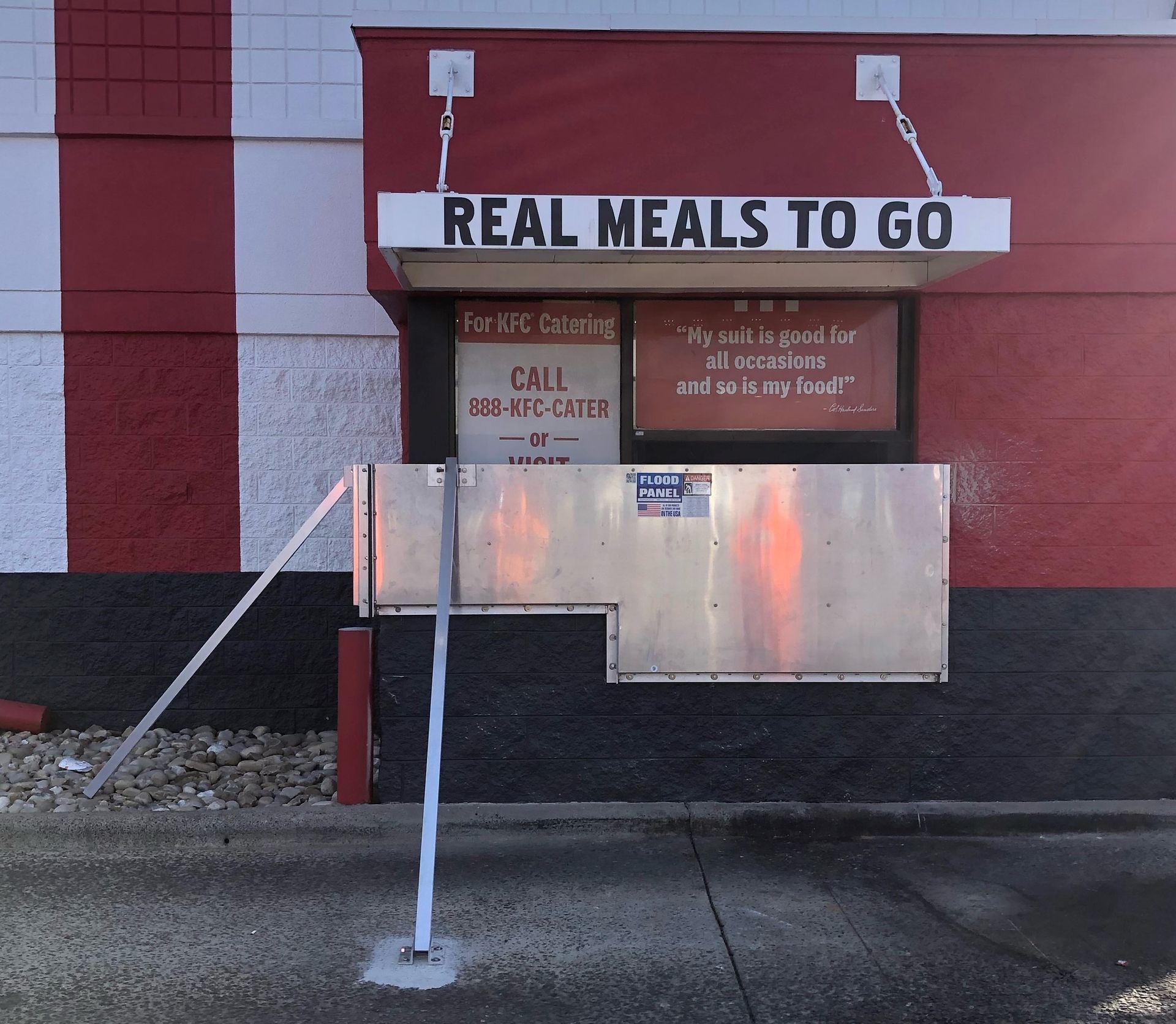

A red and white building with a sign that says real meals to go

A metal box with a sticker that says fuel on it

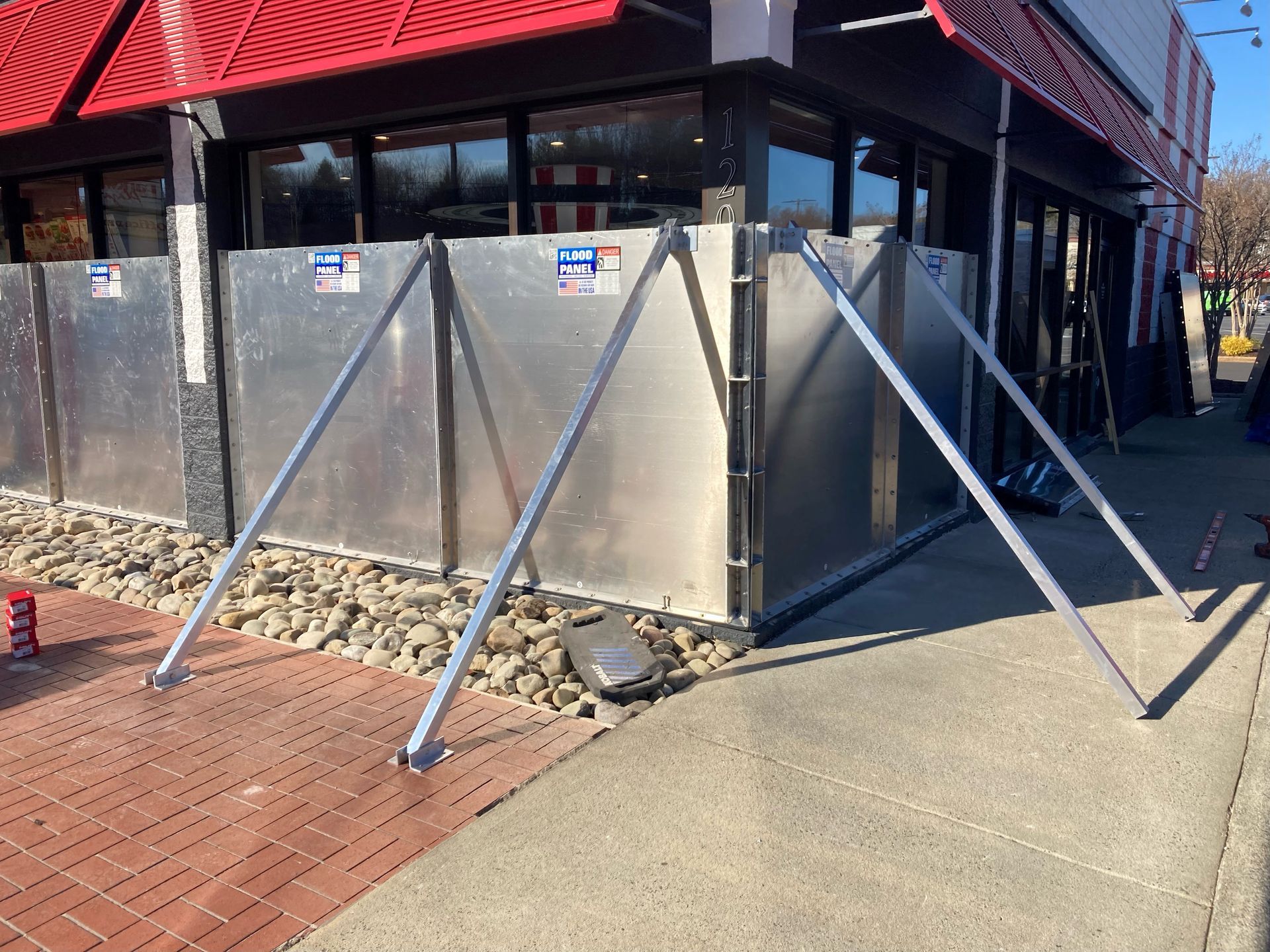

A metal barrier is being installed outside of a building.

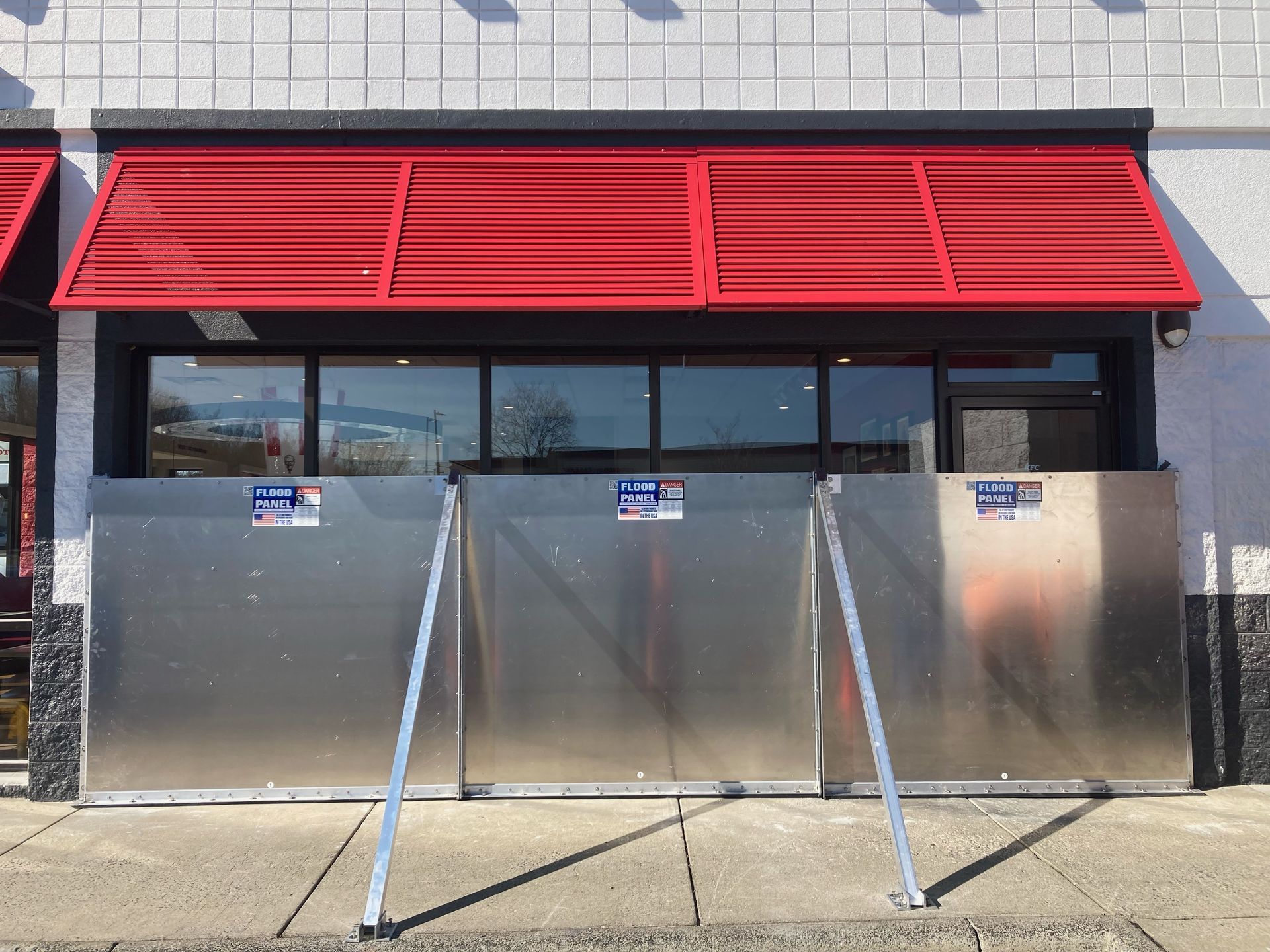

A metal barrier is sitting in front of a building.

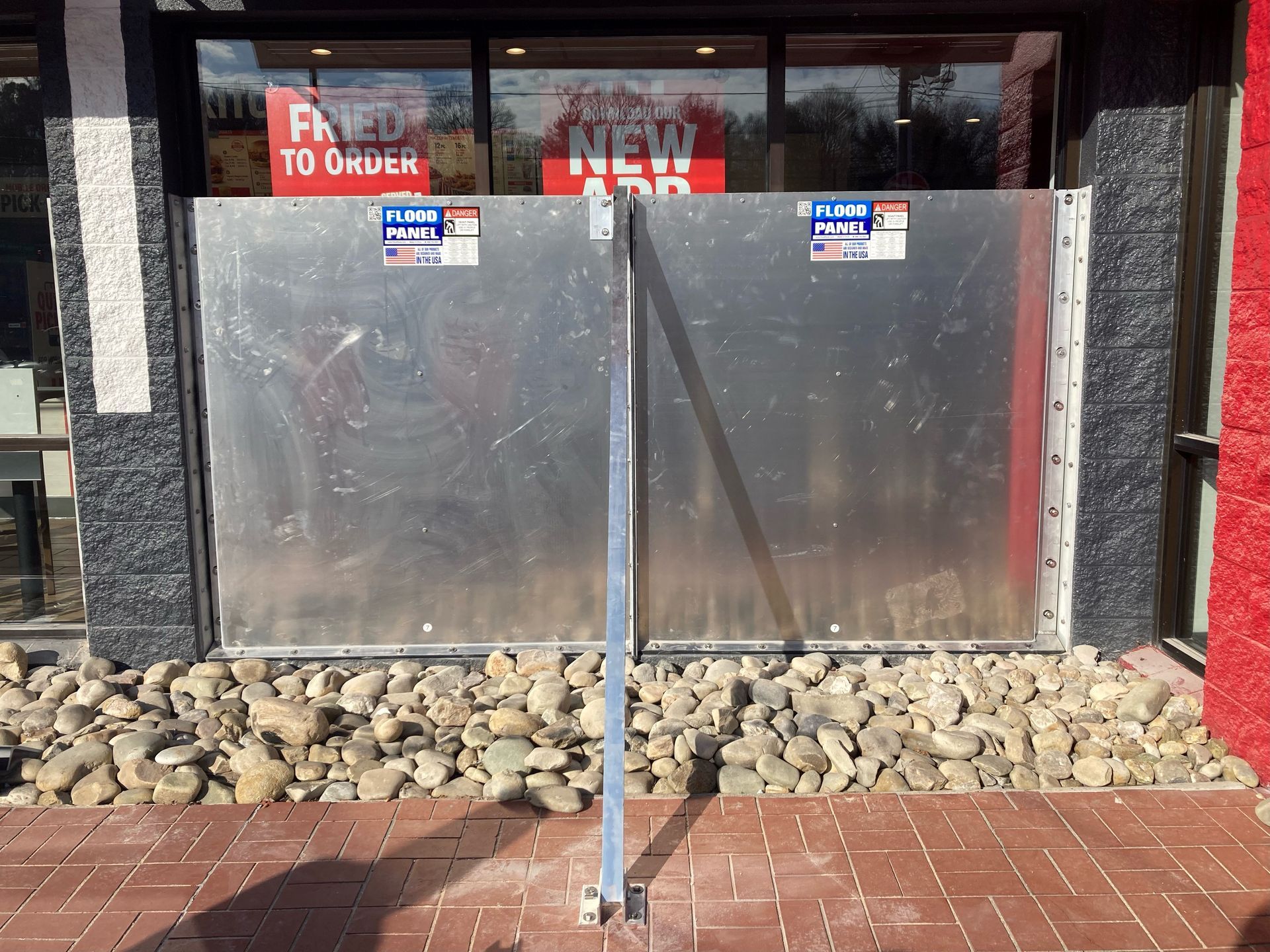

A flood barrier is in front of a red brick building

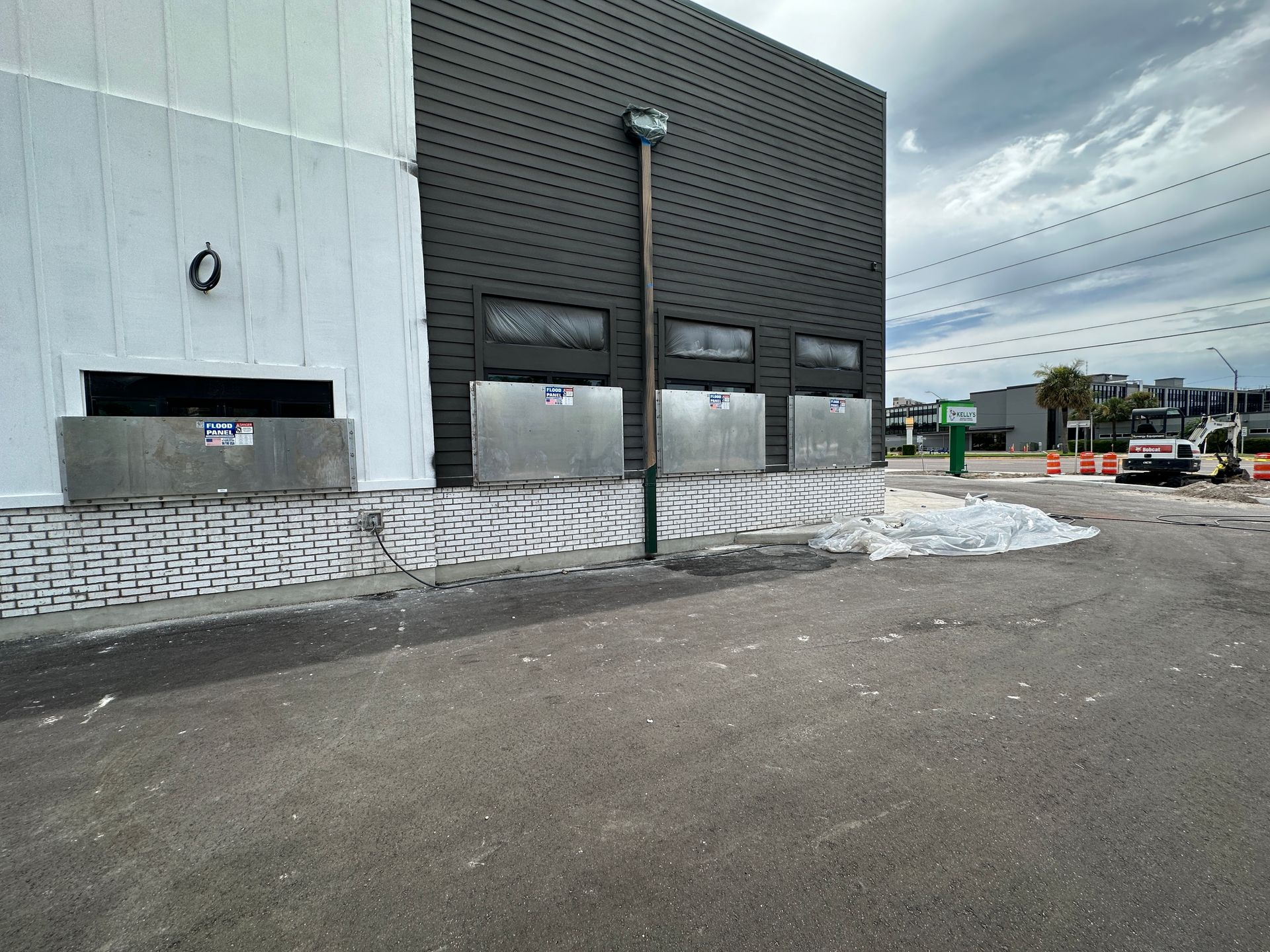

A large building with a lot of windows is being painted black and white.

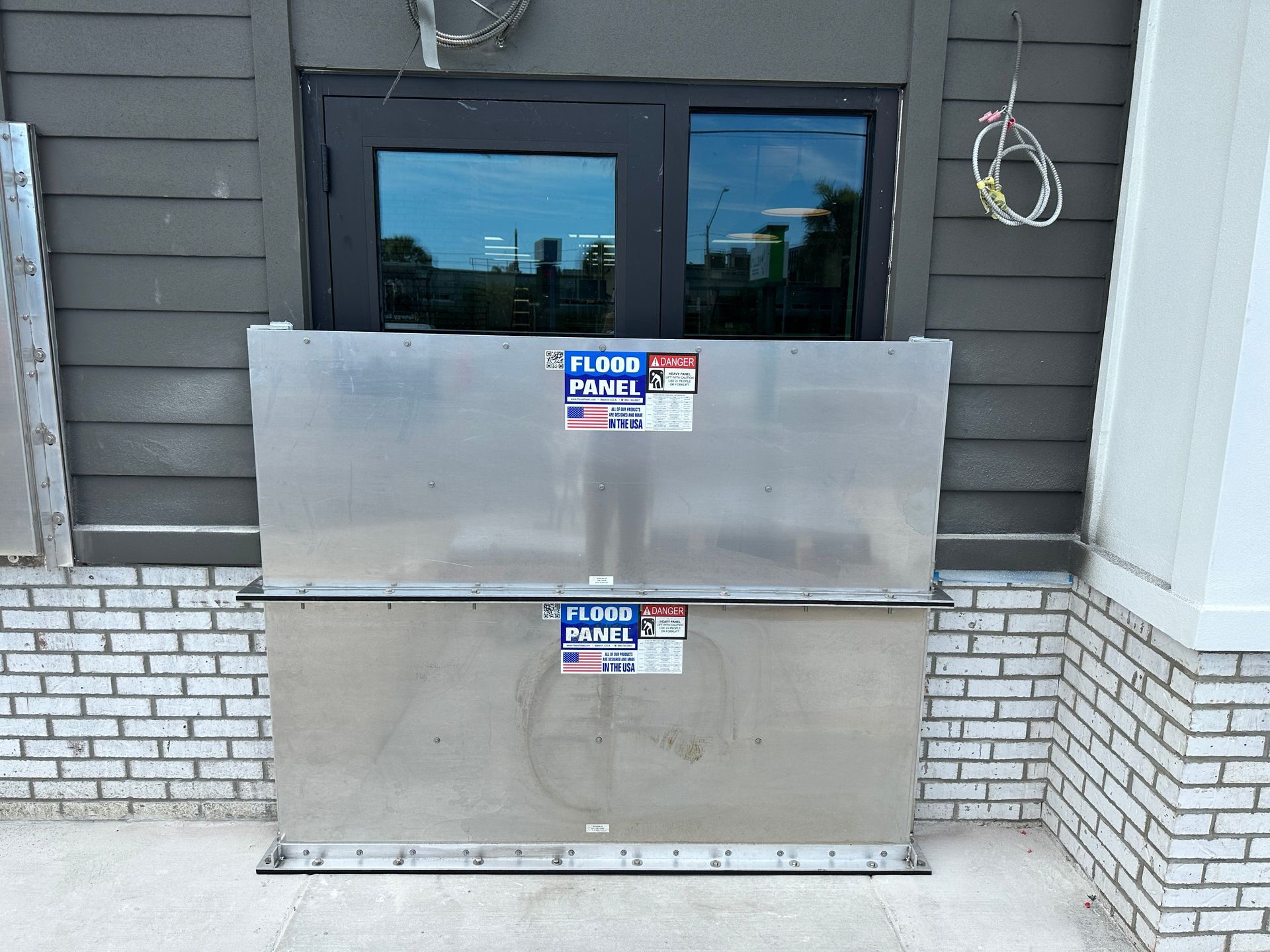

A flood panel is attached to the side of a building

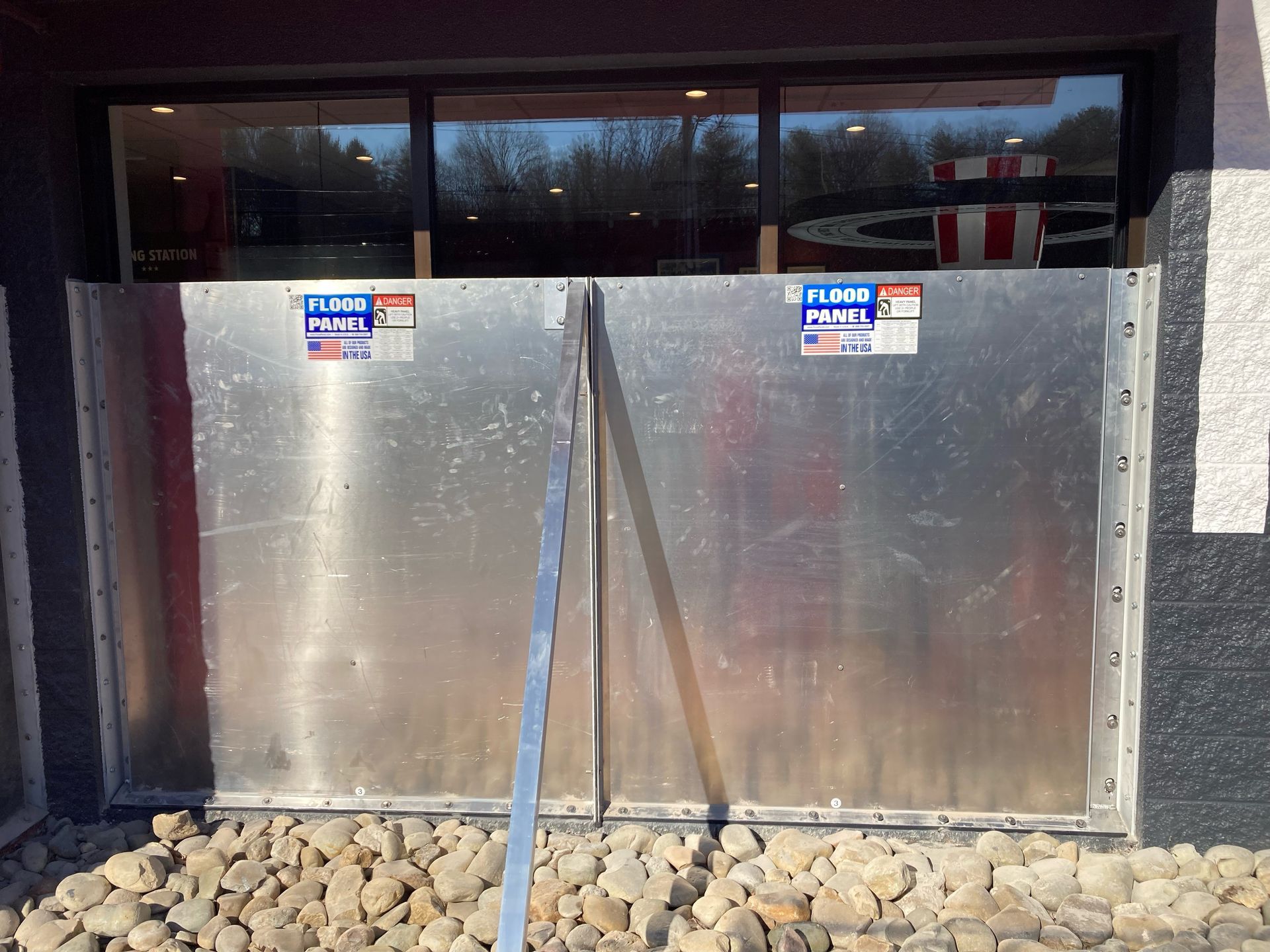

A flood panel is sitting in front of a building

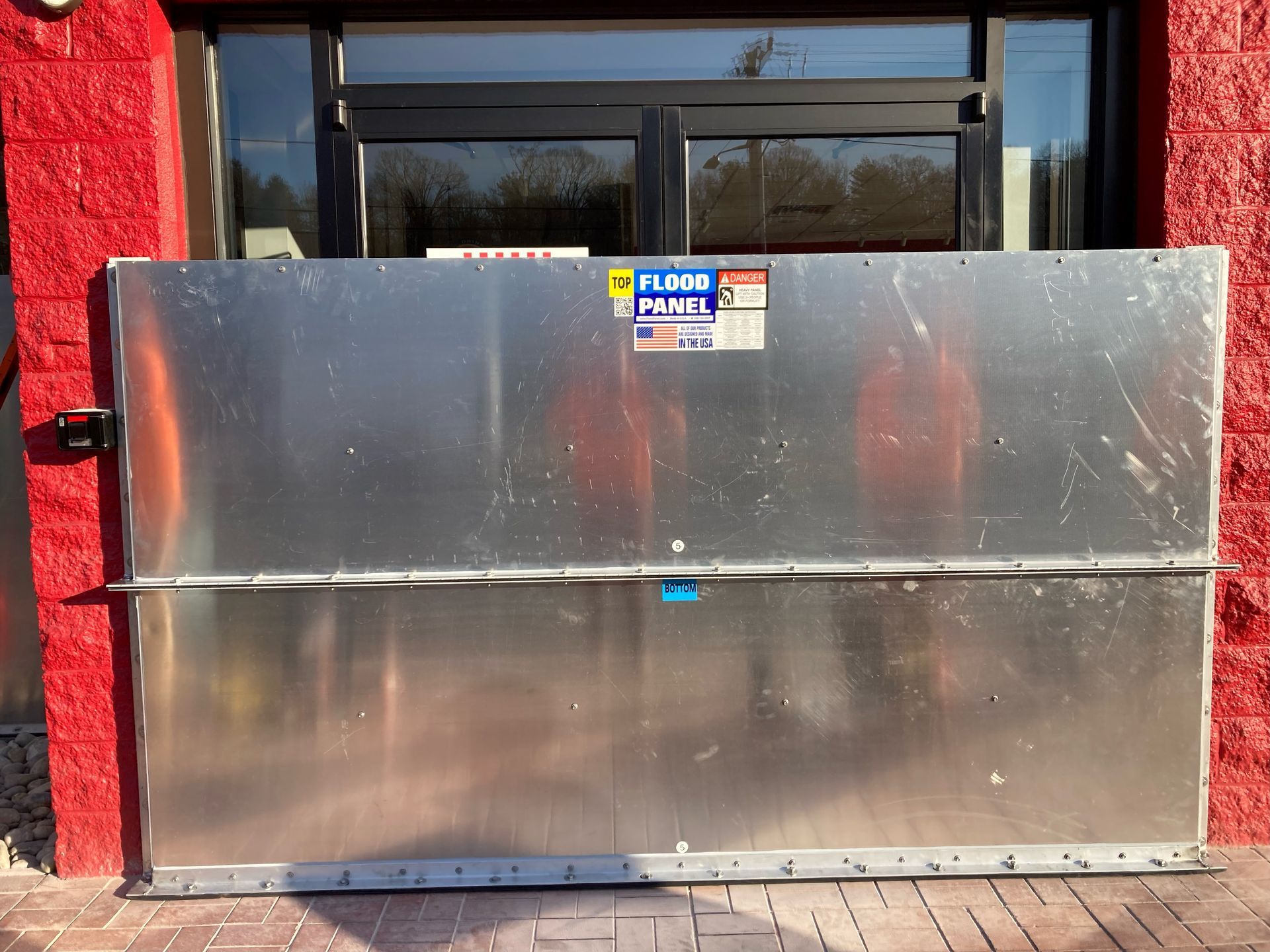

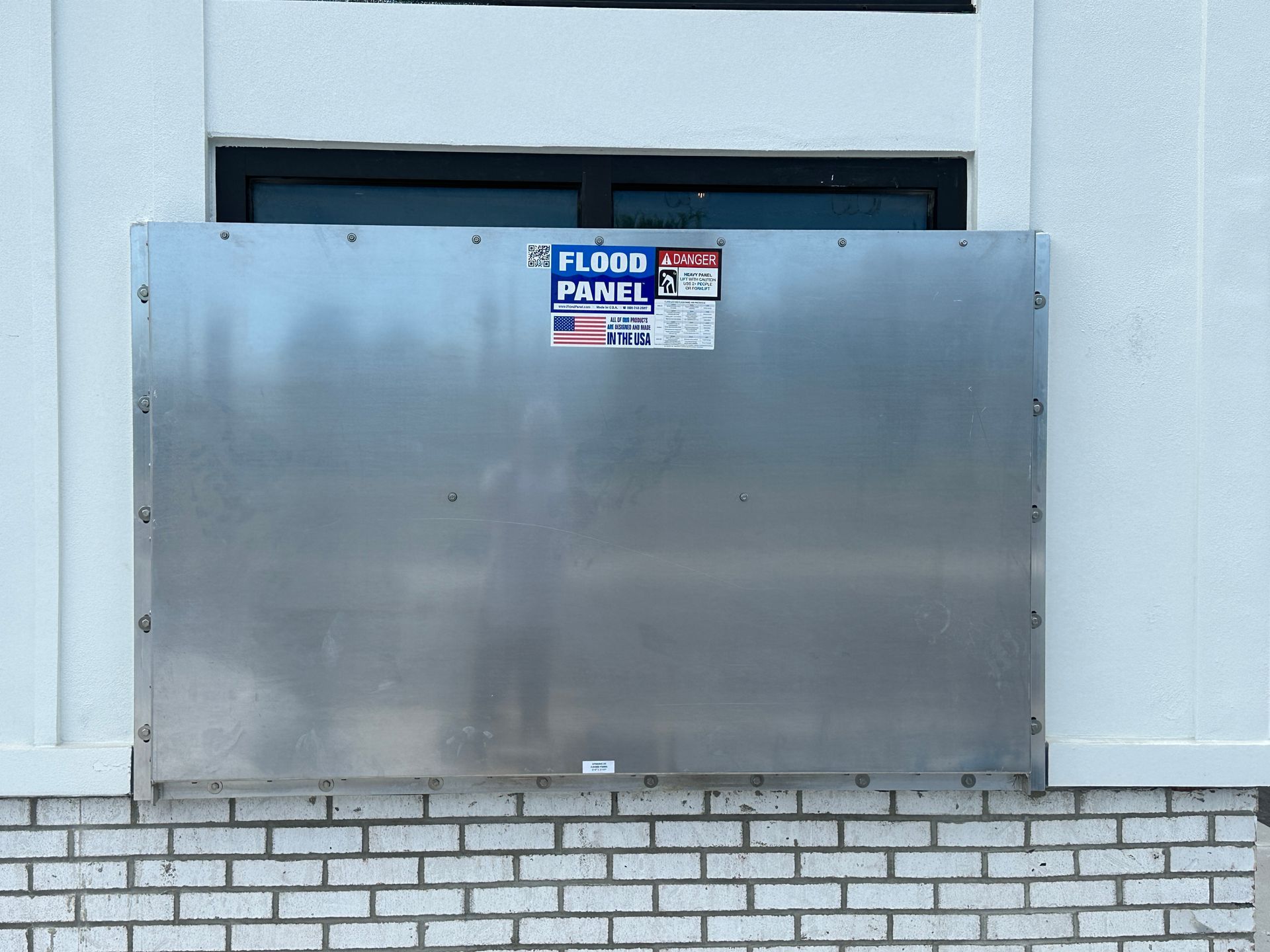

A stainless steel flood panel is attached to the side of a building

A building with a red awning and a stainless steel fence

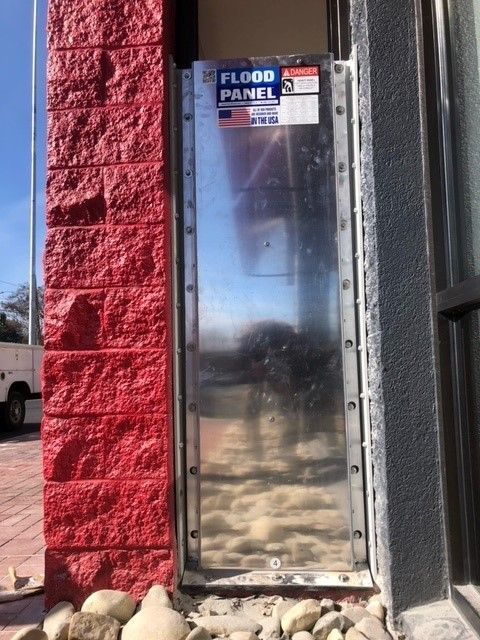

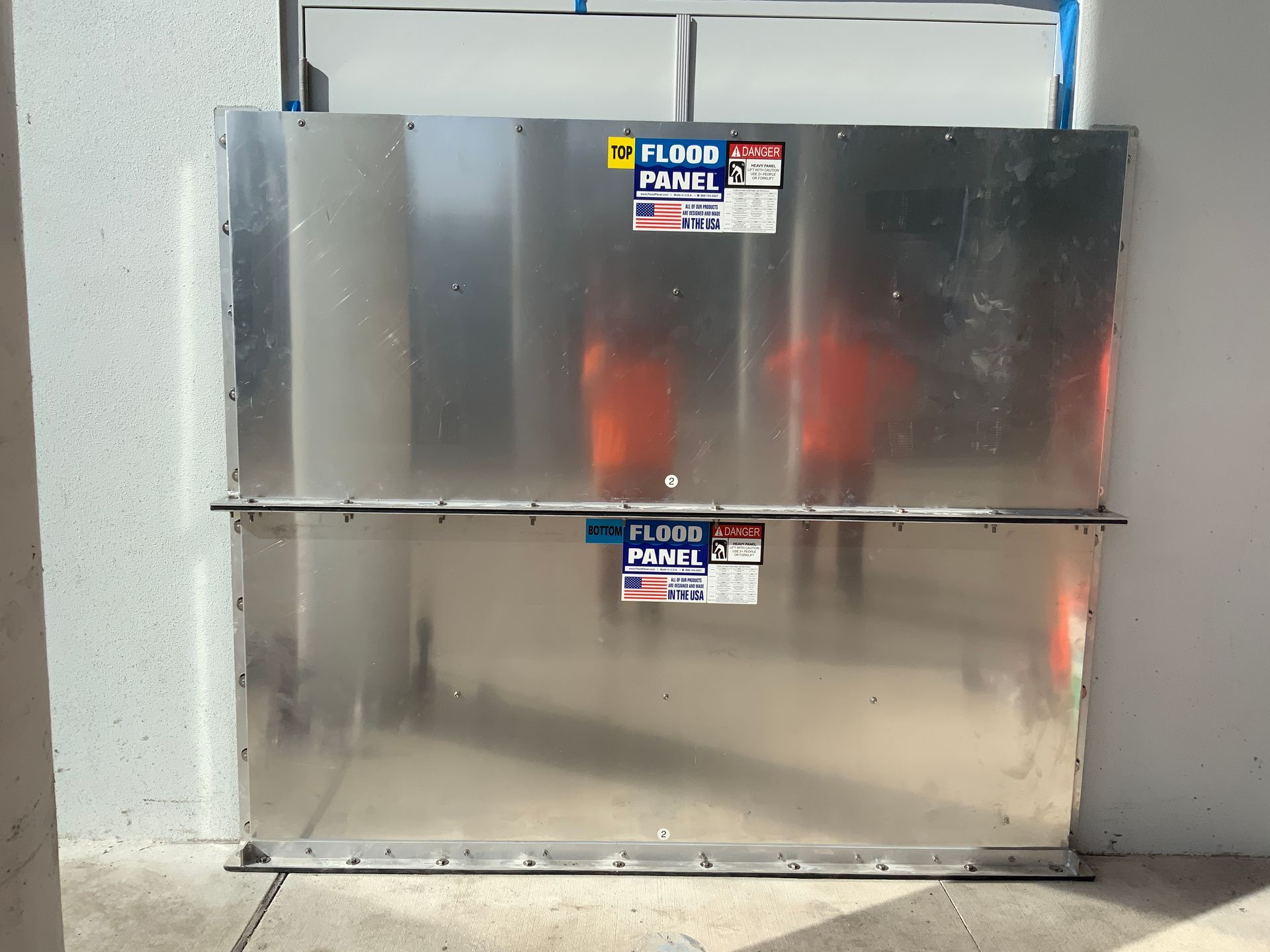

A metal wall with a sticker that says flood prime on it

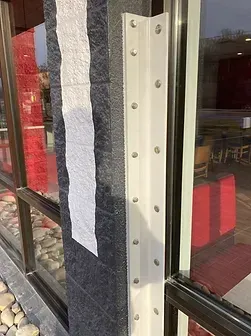

MOUNTING PLATES

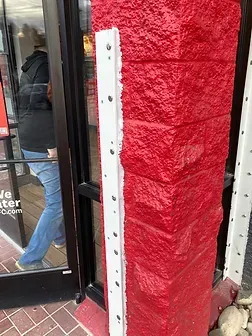

The panels attach to the floor and sides of the building opening using hex bolts that fasten to either pre-installed anchors or mounting plates. Mounting plates can allow for more rapid deployment and are available in primed steel or stainless steel and can be painted to blend with the building color.

A white door with a stainless steel frame on a white wall.

A person is standing in front of a red brick building.

A close up of a window with a white corner guard on it.

The Flood Panel flood barrier system is a solid removable flood barrier ideal for single or double-door applications. It is engineered to withstand hurricane forces and floodwater hydrostatic impacts. Each panel is specifically engineered to the full “designed flood elevation” (height required), and is edged with a rubber gasket. The panels themselves are connected to the floor and sides of each opening or each other by preinstalled anchors and through bolts. Panels with a span greater than 4′ can be supported by either a 45-degree brace or a Mid-Span Support Post® (A proprietary design of Flood Panel) if necessary. We offer design heights from 12″ to over 7′. Custom designs are available that include large panels with no braces.

The system can also be designed with embed mounting plates for the sill and jambs allowing for easy initial installation as well as rapid deployment. The embed plates are available in primed steel or stainless steel and can be painted to blend with the building color.
